Standard Thermocouple Model 1600 (NCJ)


1600 / Platinum Rhodium / Thermocouple Standard Platinum


- 온도범위: 0°C  ~ 1600°C  (R or S)

  Type R: Platinum vs Platinum 13% Rhodium

  Type S: Platinum vs Platinum 10% Rhodium

- Cold Junction: 250mm long x 4.5 diameter

- 프루브 길이: 300, 600mm 타입별 2가지

- Heating time: 45minutes
















1. 온도범위

Thermocouple Standards의 등온선 범위는 수년간 개발의 결과물로 R, S타입으로 제공되고 있으며,

0℃에서 1600℃의 온도범위를 커버합니다.




2. 구조

측정 어셈블리는 7mm x 300mm 또는 600mm의 99.7% 가스가 새지 않는 (gas tight) recrystallized alumina sheath를 포함하며,

내부는 thermocouple을 고정하는 2.5mm 직경의 트윈 보어 튜브가 있습니다.

일부 교정 실험실 및 응용 분야에서는 미세 보어 튜브가 필요하기 때문에 내부의 2.5mm 어셈블리는 제거 가능합니다.




3. 연결방법

피복의 귀금속 thermocouple 와이어는 측정 피복을 0℃ 기준 시스템에서 참조하기에 적합한

4.5mm x 250mm stainless steel sheath의 기준 피복에 연결합니다.

2개의 thermo electrically free multistrand copper wires (taflon coated)는 thermocouple을 전압 측정 장치에 연결합니다.




4. 이점

Thermocouple material은 고온 오는 측정 접점에서 저온, 또는 기준 접점으로 연속적입니다.


TECH SPEC

Technical FeatureValue
Model1600
Hot Sheath Temp.0℃ ~ 1600℃ (R or 5)
Emf vs Temp.According to relevant document
Response Time5 minutes
Hot Junctuion DimensionsSee diagram
Connecting CableSee diagram
Cold Junction250.0mm long x 4.5 diameter
Cooper Extension Wires2000mm
Immersion100mm min

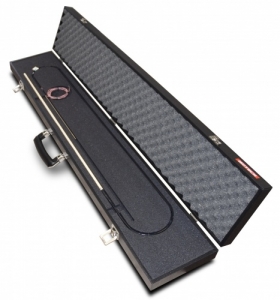

Case dimensionsHeight 65mm, Width 710mm, Depth 165mm, Gross Weight 900g
FeatureRemovable inner assembly
The standard thermocouple described can be supplied in the following coble metal combinationsType R: Platinum vs Platinum 13% Rhodium
or
Type S: Platinum vs Platinum 10% Rhodium
How to OrderModel 1600 type R/300. Model 1600 type R/600, Model 1600 type S/300, Model 1600 type S/600. If cold junction not required, specify NCJ. UKAS Calibration included.
